Latina

Subtitle

  • S - Semi-assembled;

  • BR - White;

  • AL - Aluminium;

  • PM - Matte Black;

  • BM - Matte White.

Electric Shutters Controllers

  Designation Ref. Color

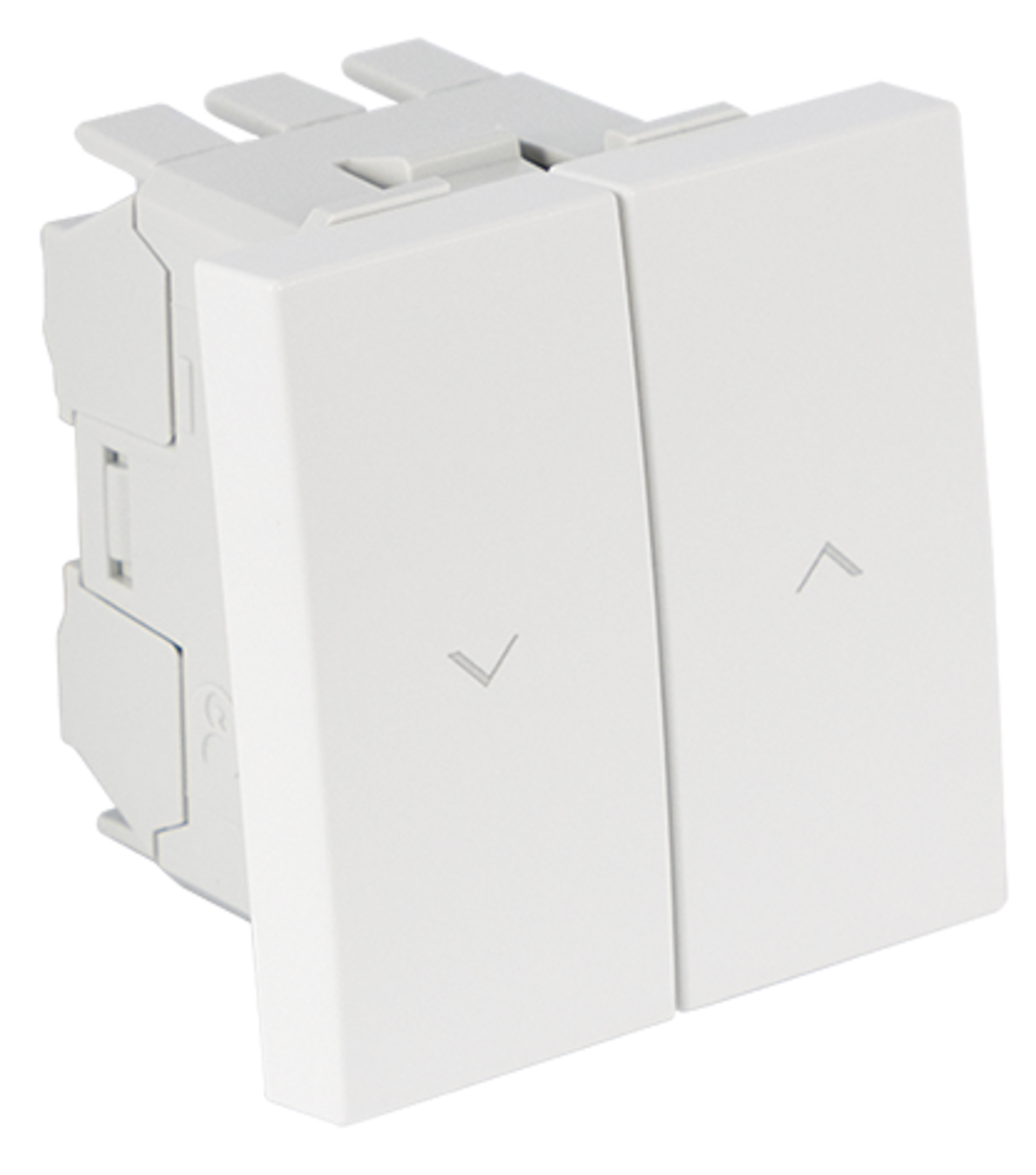

Electric Shutters Switch - 2 Modules

Electric Shutters Switch - 2 Modules

10A - 250V~
- Operates as a switch. Mechanic and electric protection against two simultaneous commands.
- Pressing one button automatically releases the other.

45293 S

BR BM PM AL

Electric Shutters Switch with Mechanical Blockage - 2 Modules

Electric Shutters Switch with Mechanical Blockage - 2 Modules

10A - 250V~
- Operates as a switch. Mechanic and electric protection against two simultaneous commands.
- You must “STOP” one operation before beginning another.

45295 S

BR BM PM AL

Venetian Double Push-button - 2 Modules

Venetian Double Push-button - 2 Modules

10A - 250V~
- Push-button function.
- Electrical blockade against two occasional simultaneous orders.

45281 S

BR BM PM AL

Venetian Double Push-button for multiple points Blinds Control - 2 Modules

Venetian Double Push-button for multiple points Blinds Control - 2 Modules

10A - 250V~
- Push-button function.
- Electrical blockade against two occasional simultaneous orders.
- It allows to control a blind from several points.
- To be used with Relay for Blinds Control (Ref. 81511)

45283 S

BR BM PM AL

General Control Module with IR Sensor for Electric Shutters - 2 Modules

General Control Module with IR Sensor for Electric Shutters - 2 Modules

- Power: 100 V ~ - 240 VA; 240 V ~ - 500 VA; 50/60 Hz.
- Possibility of remote control with Multifunctions IR Remote Control Transmitter (Ref. 81900).
- 2 Programmable functions (Open/Close).
- “Standby” feature.

eco

45311 S

BR BM PM AL

Local Control Module with IR Sensor for Electric Shutters - 2 Modules

Local Control Module with IR Sensor for Electric Shutters - 2 Modules

- Power: 100 V ~ - 240 VA; 240 V ~ - 500 VA; 50/60 Hz.
- Possibility of remote control with Multifunctions IR Remote Control Transmitter (Ref. 81900).

eco

45312 S

BR BM PM AL
