Panelboards

Panelboards

Subtitle
  • ATI - Individual Telecommunications Panel;

  • CC - Coaxial Cable Outlets;

  • PC - Copper Pair Outlets;

  • CATI - Telecom Auxiliar Box;

  • BR - White.

Telecommunications Panelboard - ATI (Complete)

  Designation Ref. Mod. Rows WxHxD (mm) Color

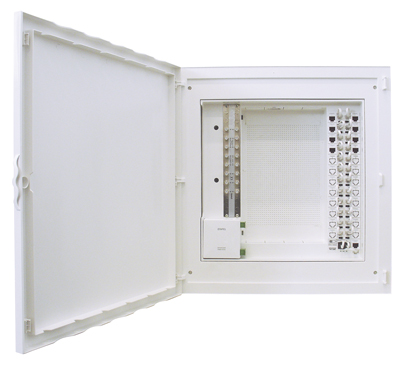

Complete Low Profile Flush Mounting ATI

Complete Low Profile Flush Mounting ATI

6 COAXIAL CABLE OUTPUTS (CC) AND UP TO 12 COPPER PAIR OUTPUTS (CP)
- 850ºC resistant back box suitable for installation in masonry or hollow walls;
- Accessories: - CP Splitter with connectors Cat. 6 UTP (1 input, 6 outputs, expandable to 12 outputs);
- Double Coaxial Splitter (2 inputs and 2 x 6 outputs);
−OF Splitter with SC/APC Simplex Optical Fibre Coupler - 4 un;
- F-type 90º Compression Male Socket (Ref. 82605) - 8 un;
- 75 Ohm F-type termination (Ref. 82681) - 6 un;
- Brass terminal with 9 Earth Connections (Ref. 60903) - 1 unit;
- Schuko Socket (Ref. 45132 SBR) - 1 unit;
- Self-adhesive terminal socket identification sheet and labels.

60048 2PB

-

-

577x400x124

BR

Complete Low Profile Flush Mounting ATI

Complete Low Profile Flush Mounting ATI

8 COAXIAL CABLE OUTPUTS (CC) AND UP TO 24 COPPER PAIR OUTPUTS (CP)
- 850ºC resistant back box suitable for installation in masonry or hollow walls;
- Accessories: - CP Splitter with connectors Cat. 6 UTP (1 input, 8 outputs, expandable to 24 outputs);
- Double Coaxial Splitter (2 inputs and 2 x 8 outputs);
−OF Splitter with SC/APC Simplex Optical Fibre Coupler - 4 un;
- F-type 90º Compression Male Socket (Ref. 82605) - 10 un;
- 75 Ohm F-type termination (Ref. 82681) - 8 un;
- Brass terminal with 9 Earth Connections (Ref. 60903) - 1 unit;
- Schuko Socket (Ref. 45132 SBR) - 1 unit;
- Self-adhesive terminal socket identification sheet and labels.

60060 3SB

-

-

505x525x124

BR

Complete Low Profile Flush Mounting ATI

Complete Low Profile Flush Mounting ATI

12 COAXIAL CABLE OUTPUTS (CC) AND UP TO 24 COPPER PAIR OUTPUTS (CP)
- 850ºC resistant back box suitable for installation in masonry or hollow walls;
- Accessories: - CP Splitter with connectors Cat. 6 UTP (1 input, 12 outputs, expandable to 24 outputs);
- Double Coaxial Splitter (2 inputs and 2 x 12 outputs);
−OF Splitter with SC/APC Simplex Optical Fibre Coupler - 4 un;
- F-type 90º Compression Male Socket (Ref. 82605) - 14 un;
- 75 Ohm F-type termination (Ref. 82681) - 12 un;
- Brass terminal with 9 Earth Connections (Ref. 60903) - 1 unit;
- Schuko Socket (Ref. 45132 SBR) - 1 unit;
- Self-adhesive terminal socket identification sheet and labels.

60060 3PB

-

-

505x525x124

BR
